Armored Profibus DP Cable

2*0.64mm (22AWG) Cu/F-PE/Al-foil screen/TCWB/LSZH/ GSWA/LSZH, UV resistance, FR to IEC 60332-3-22 Cat.A

Bus Cables

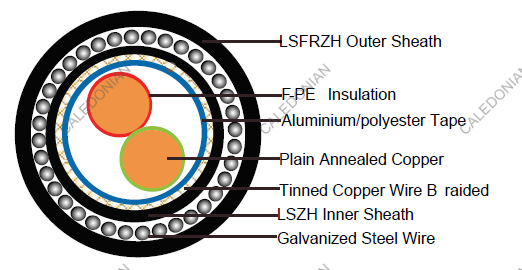

Construction:

Pair No. X Conductor Size 1PX22AWG 1/0.64mm
Conductor Solid plain copper 1/0.64mm
Insulation Foam PE
Shielding 1 Aluminium foil
Shielding 2 Tinned copper wire braid - 65% coverage
Inner Sheath LSZH
Amour Galvanised steel wire,0 9mm diameter
Outer Sheath LSFRZH
Overall Diameter 13.9 +/-3mm
Approx. Weight 304KG/KM
Core Color
Red&Green
Sheath Color Black or other color upon request

Electrical Data:

Characteristic Impedance @ 3-20MHz 150 Ω ± 10 Ω
Conductor Resistance 54.5 Ohm/km max.
Test Voltage 1KV
Operate Voltage 300V RMS
Mutual capacitance 29.5 pF/m nominal
Max. Attenuation 0.2MHz 2 dB/100m
4MHz 2.95dB/100m
16MHz 4. 9dB/100m

Technical Data:

Min. Bending Radius 6-8 x OD mm
Operating Temp.Range, min. -30 °C
Operating Temp.Range, max. +90 °C

Fire Performance

Reduced Fire Propagation (Vertically-mounted bundled cables test) IEC 60332-3-22 Cat.A
Halogen Free IEC 60754-1/-2
Low Smoke Capacity IEC 61034-1
Flame Retardance IEC 60332-1
