BS 6724 Standards Armoured Power Cables, 600/1000V
Multi-core cables with stranded copper conductors
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

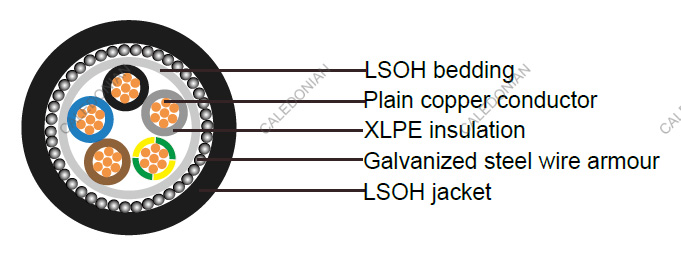

Construction
| Conductor | Solid Aluminum or Annealed Copper conductor, circular or shaped, Class 2 to BS EN60228. |
|---|---|
| Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 conforming to BS 7655-1.3 or type GP 6 conforming to BS 7655-1.2. |
| Colour Code | 1 Core : Brown or Blue 2 Cores: Brown, Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green/Yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers |
| Bedding | The bedding shall consist of an extruded layer of polymeric material consistent with the operating temperature of the cable. |
| Armour | Single Core: AWA (Aluminum Wire Armour) Multi Core: GSWA (Galvanized Steel Wire Armour) |
| Outer Sheath | LSOH (Low Smoke Zero Halogen),conforming to BS 7655-6.1. |
Technical Information
Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant BS EN 60332-1-2 ; BS EN 60332-3-24:2009
Halogen free BS EN 60754-1
Smoke density BS EN 61034-2
Multi-core 600/1000 V cables with stranded copper conductors
| Nominal Cross-sectional Area | Strand Type | Nominal Insulation Thickness | Nominal Bedding Thickness | Nominal Steel Wire Armor dia. | Nominal Sheath Thickness | Approx. Overall Diameter | Aprrox Weight |
|---|---|---|---|---|---|---|---|
| mm² | No./mm | mm | mm | mm | mm | mm | kg/km |
| 7x1.5 | 7/0.53 | 0.6 | 0.8 | 0.9 | 1.4 | 15.2 | 500 |
| 12x1.5 | 7/0.53 | 0.6 | 0.8 | 1.25 | 1.5 | 19.4 | 820 |
| 19x1.5 | 7/0.53 | 0.6 | 0.8 | 1.25 | 1.6 | 22.2 | 1080 |
| 27x1.5 | 7/0.53 | 0.6 | 1 | 1.6 | 1.7 | 26.7 | 1550 |
| 37x1.5 | 7/0.53 | 0.6 | 1 | 1.6 | 1.7 | 29 | 1850 |
| 48x1.5 | 7/0.53 | 0.6 | 1 | 1.6 | 1.8 | 32.7 | 2250 |
| 7x2.5 | 7/0.67 | 0.7 | 0.8 | 0.9 | 1.4 | 17.1 | 730 |
| 12x2.5 | 7/0.67 | 0.7 | 0.8 | 1.25 | 1.6 | 22.4 | 1020 |
| 19x2.5 | 7/0.67 | 0.7 | 1 | 1.6 | 1.7 | 26.6 | 1530 |
| 27x2.5 | 7/0.67 | 0.7 | 1 | 1.6 | 1.8 | 30.7 | 1960 |
| 37x2.5 | 7/0.67 | 0.7 | 1 | 1.6 | 1.8 | 33.8 | 2450 |
| 48x2.5 | 7/0.67 | 0.7 | 1.2 | 2 | 2 | 39.3 | 3260 |
| 7x4 | 7/0.85 | 0.7 | 0.8 | 1.25 | 1.5 | 19.7 | 840 |
| 12x4 | 7/0.85 | 0.7 | 1 | 1.6 | 1.6 | 25.7 | 1390 |
| 19x4 | 7/0.85 | 0.7 | 1 | 1.6 | 1.7 | 29.3 | 1850 |
| 27x4 | 7/0.85 | 0.7 | 1 | 1.6 | 1.9 | 34.4 | 2350 |
| 37x4 | 7/0.85 | 0.7 | 1.2 | 2 | 2 | 39.2 | 2800 |
| 48x4 | 7/0.85 | 0.7 | 1.2 | 2 | 2.1 | 44.1 | 3250 |
