  HomeProuductsBS 6346 Cables

BS 6346 PVC Insulated Cables,1900/3300V
Three-core 1900/3300 V cables with solid aluminum conductors

Application

These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour, so they are well adapted to underground use in industrial applications, in moist areas.

Construction

Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. Insulation PVC(Polyvinyl Chloride) type TI1

Colour Code 1 Core : Brown
  2 Cores: Brown, Blue
  3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green-yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers

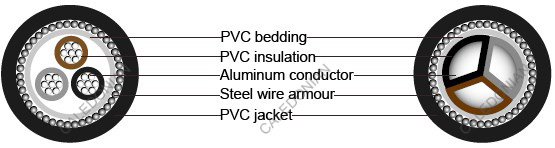

Filler(optional) Binder Tape(optional) Inner Sheath/ Bedding Armour Outer Sheath PVC or Polypropylene yarn Polyester (Mylar) tape PVC (Polyvinyl Chloride) Single Core: AWA (Aluminum WireArmour) Multi Core: SWA (Steel Wire or Tape Armour) PVC(Polyvinyl Chloride), type TM1

Technical Information

Voltage rating 1900/3300V
Temperature rating -20°C to +60°C
Bending radius Single core: 10 x overall diameter     Multicores: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1

Three-core 1900/3300 V cables with solid aluminum conductors

Nominal cross-sectional area Nominal insulation thickness Nominal bedding thickness Nominal Armor dia. Nominal sheath thickness Approx. overall diameter Approx. cable weight
mm² mm mm mm mm mm kg/mm
3x16 2.2 1.0 1.6 1.8 28.9 1630
3x25 2.2 1.0 1.6 1.8 31.3 1880
3x35 2.2 1.0 1.6 1.9 33.7 2145
3x35* 2.2 1.0 1.6 1.9 30.6 2145
3x50* 2.2 1.2 2.0 2.0 33.9 2880
3x70* 2.2 1.2 2.0 2.1 36.9 3340
3x95* 2.2 1.2 2.0 2.2 40.0 3870
3x120* 2.2 1.4 2.5 2.3 44.0 4980
3x150* 2.2 1.4 2.5 2.4 46.5 5585
3x185* 2.2 1.4 2.5 2.5 49.6 6250
3x240* 2.2 1.6 2.5 2.6 54.2 7315
3x300* 2.4 1.6 2.5 2.8 59.2 8365
