BS 5467 Armoured Power Cables, 600/1000V
Two-core 600/1000 V cables with solid aluminum conductors
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

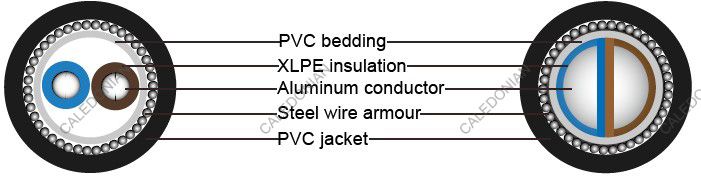

Construction
| Conductor | Solid Aluminum or Annealed Copper conductor, circular or shaped, Class 2 to BS EN60228 |
|---|---|
| Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 conforming to BS 7655-1.3 or type GP 6 conforming to BS 7655-1.2. |
| Colour Code | 1 Core : Brown or Blue 2 Cores: Brown, Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green/Yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers |
| Bedding | The bedding shall consist of an extruded layer of polymeric material consistent with the operating temperature of the cable. |
| Armour | Single Core: AWA (Aluminum Wire Armour) Multi Core: GSWA (Galvanized Steel Wire Armour) |
| Outer Sheath | Extruded PVC, type 9 specified in BS7655-4.2. |
Technical Information
Voltage rating 600/1000V
Temperature rating： 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant BS EN 60332-1-2
| Nominal Cross-sectional Area | Nominal Insula-tion thickness | Nominal bedding thickness | Nominal Steel Wire Armor dia. | Armour strip | Nominal | Approx. Overall Diameter | Aprrox Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|
| thickness | width | Sheath thickness | wire armor Extruded bedding | strip armor | Tapedbedding | |||||
| mm² | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 2x16 | 0.7 | 0.8 | 1.25 | 0.6 | 2.4 | 1.5 | 19.1 | 19.1 | 17.8 | 650 |
| 2x25 | 0.9 | 0.8 | 1.25 | 0.6 | 2.4 | 1.5 | 22.4 | 22.4 | 21.1 | 915 |
| 2x25* | 0.9 | 0.8 | 1.25 | 0.6 | 2.4 | 1.6 | 18.7 | 18.7 | 17.4 | 1255 |
| 2x35 | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.6 | 25.7 | 25.3 | 23.3 | 1255 |
| 2x35* | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.7 | 21.4 | 21.0 | 19 | 1430 |
| 2x50* | 1.0 | 1 | 1.6 | 0.6 | 2.4 | 1.8 | 23.5 | 23.1 | 21.1 | 1430 |
| 2x70* | 1.1 | 1 | 1.6 | 1 | 3.6 | 1.9 | 26.3 | 25.9 | 24.7 | 1780 |
| 2x95* | 1.1 | 1.2 | 2.0 | 1 | 3.6 | 2 | 30 | 29.2 | 27.2 | 1950 |
