BS 5467 Armoured Power Cables, 600/1000V
Two-core 600/1000 V cables with stranded copper conductors
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

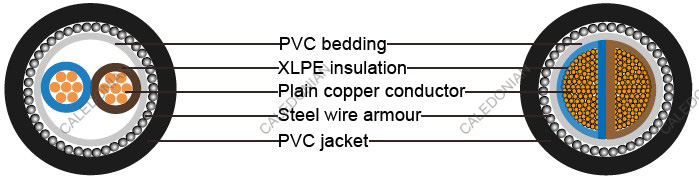

Construction
Conductor | Solid Aluminum or Annealed Copper conductor, circular or shaped, Class 2 to BS EN60228 |
---|---|
Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 conforming to BS 7655-1.3 or type GP 6 conforming to BS 7655-1.2. |
Colour Code | 1 Core : Brown or Blue 2 Cores: Brown, Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green/Yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers |
Bedding | The bedding shall consist of an extruded layer of polymeric material consistent with the operating temperature of the cable. |
Armour | Single Core: AWA (Aluminum Wire Armour) Multi Core: GSWA (Galvanized Steel Wire Armour) |
Outer Sheath | Extruded PVC, type 9 specified in BS7655-4.2. |
Technical Information
Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant BS EN 60332-1-2
Nominal Cross-sectional Area | Strand Type | Nominal Insulation thickness | Nominal bedding thickness | Nominal Steel Wire Armor dia. | Nominal Sheath thickness | Approx. Overall Diameter | Aprrox Weight | |
---|---|---|---|---|---|---|---|---|
Extruded bedding | Taped bedding | |||||||
mm² | No./mm | mm | mm | mm | mm | mm | mm | kg/km |
2x1.5 | 7/0.53 | 0.6 | 0.8 | 0.9 | 1.4 | 12.1 | - | 320 |
2x2.5 | 7/0.67 | 0.7 | 0.8 | 0.9 | 1.4 | 13.6 | - | 365 |
2x4 | 7/0.85 | 0.7 | 0.8 | 0.9 | 1.4 | 14.7 | - | 440 |
2x6 | 7/1.04 | 0.7 | 0.8 | 0.9 | 1.4 | 15.9 | - | 470 |
2x10 | 7/1.35 | 0.7 | 0.8 | 0.9 | 1.5 | 18.0 | - | 800 |
2x16 | 7/1.70 | 0.7 | 0.8 | 1.25 | 1.5 | 20.4 | 20.4 | 900 |
2x25 | 7/2.14 | 0.9 | 0.8 | 1.25 | 1.6 | 24.1 | 24.1 | 1240 |
2x25* | 7/2.14 | 0.9 | 0.8 | 1.25 | 1.6 | 20.4 | 20.4 | 1240 |
2x35 | 7/2.52 | 0.9 | 1 | 1.6 | 1.7 | 27.7 | 27.3 | 1710 |
2x35* | 7/2.52 | 0.9 | 1 | 1.6 | 1.7 | 23.3 | 22.9 | 1710 |
Nominal Cross-sectional Area | Strand Type | Nominal Insulation thickness | Nominal bedding thickness | Nominal Steel Wire Armor dia. | Nominal Sheath thickness | Approx. Overall Diameter | Aprrox Weight | |
---|---|---|---|---|---|---|---|---|
Extruded bedding | Taped bedding | |||||||
mm² | No./mm | mm | mm | mm | mm | mm | mm | kg/km |
2x50* | 19/1.78 | 1.0 | 1 | 1.6 | 1.8 | 25.8 | 25.4 | 1800 |
2x70* | 19/2.14 | 1.1 | 1 | 1.6 | 1.9 | 29.0 | 28.6 | 2320 |
2x95* | 19/2.52 | 1.1 | 1.2 | 2.0 | 2.0 | 33.1 | 32.3 | 3150 |
2x120* | 37/2.03 | 1.2 | 1.2 | 2.0 | 2.1 | 36.1 | 35.3 | 3880 |
2x150* | 37/2.25 | 1.4 | 1.2 | 2.0 | 2.2 | 39.3 | 38.5 | 4820 |
2x185* | 37/2.52 | 1.6 | 1.4 | 2.5 | 2.4 | 44.7 | 43.5 | 5920 |
2x240* | 61/2.25 | 1.7 | 1.4 | 2.5 | 2.5 | 49.0 | 47.8 | 7300 |
2x300* | 61/2.52 | 1.8 | 1.6 | 2.5 | 2.6 | 53.5 | 51.9 | 8770 |
2x400* | 61/2.85 | 2 | 1.6 | 2.5 | 2.8 | 59.0 | 57.4 | 10905 |
