BS 5467 Armoured Power Cables, 600/1000V

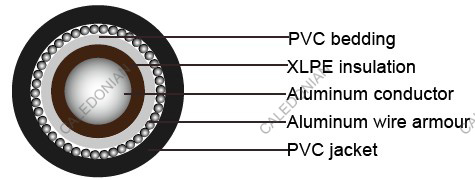

Single-core 600/1000 V cables with solid aluminum conductor
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.
Construction
| Conductor | Solid Aluminum or Annealed Copper conductor, circular or shaped, Class 2 to BS EN60228 |
|---|---|
| Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 conforming to BS 7655-1.3 or type GP 6 conforming to BS 7655-1.2. |
| Colour Code | 1 Core : Brown or Blue 2 Cores: Brown, Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green/Yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers |
| Bedding | The bedding shall consist of an extruded layer of polymeric material consistent with the operating temperature of the cable. |
| Armour | Single Core: AWA (Aluminum Wire Armour) Multi Core: GSWA (Galvanized Steel Wire Armour) |
| Outer Sheath | Extruded PVC, type 9 specified in BS7655-4.2. |
Technical Information
Voltage rating： 600/1000VTemperature rating： 0°C to +90°C
Bending radius： 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant： BS EN 60332-1-2
| Nominal Cross-sectional Area | Nominal Insulation thickness | Nominal bedding thickness | Nominal Alum Wire Armor dia. | Armour strip | Nominal Sheath thickness | Approx. Overall Diameter | Aprrox Weight | ||
|---|---|---|---|---|---|---|---|---|---|
| thickness | width | wire armor | strip armor | ||||||
| mm² | mm | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 1x50 | 1.0 | 0.8 | 0.9 | 0.6 | 2.4 | 1.5 | 16.3 | 15.7 | 460 |
| 1x70 | 1.1 | 0.8 | 1.25 | 0.6 | 2.4 | 1.5 | 18.7 | 17.4 | 560 |
| 1x95 | 1.1 | 0.8 | 1.25 | 0.6 | 2.4 | 1.6 | 20.6 | 19.3 | 690 |
| 1x120 | 1.2 | 0.8 | 1.25 | 0.6 | 2.4 | 1.6 | 22.1 | 20.8 | 800 |
| 1x150 | 1.4 | 1 | 1.6 | 0.6 | 2.4 | 1.7 | 25.2 | 23.2 | 970 |
| 1x185 | 1.6 | 1 | 1.6 | 0.6 | 2.4 | 1.8 | 27.4 | 25.4 | 1150 |
| 1x240 | 1.7 | 1 | 1.6 | 1 | 3.6 | 1.8 | 29.9 | 28.7 | 1380 |
| 1x300 | 1.8 | 1 | 1.6 | 1 | 3.6 | 1.9 | 32.4 | 31.2 | 1640 |
