BS 5467 Armoured Power Cables, 1900/3300V
Single-core 1900/3300 V cables with solid aluminum conductor
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.
Construction

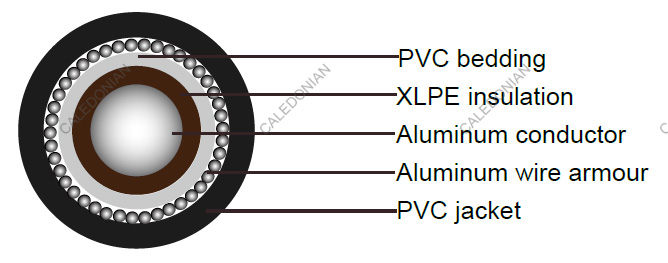

| Conductor | Solid Aluminum or Annealed Copper conductor, circular or shaped, Class 2 to BS EN60228. |
|---|---|
| Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 conforming to BS 7655-1.3 or type GP 6 conforming to BS 7655-1.2. |
| Colour Code | 1 Core : Brown 3 Cores: Brown, Black, Grey |
| Bedding | The bedding shall consist of an extruded layer of polymeric material consistent with the operating temperature of the cable. |
| Armour | Single Core: AWA (Aluminum Wire Armour) Multi Core: GSWA (Galvanized Steel Wire Armour) |
| Outer Sheath | Extruded PVC, type 9 specified in BS7655-4.2. |
Technical Information
Voltage rating 1900/3300V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant BS EN 60332-1-2
| Nominal Cross-sectional Area | Nominal Insulation thickness | Nominal bedding thickness | Nominal Alum Wire Armor dia. | Nominal Sheath thickness | Approx. Overall Diameter | Aprrox Weight |
|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | mm | kg/km |
| 1x50 | 2 | 0.8 | 1.25 | 1.6 | 19.4 | 600 |
| 1x70 | 2 | 0.8 | 1.25 | 1.6 | 20.9 | 710 |
| 1x95 | 2 | 0.8 | 1.25 | 1.6 | 22.5 | 810 |
| 1x120 | 2 | 1 | 1.6 | 1.7 | 25.2 | 1065 |
| 1x150 | 2 | 1 | 1.6 | 1.7 | 26.5 | 1210 |
| 1x185 | 2 | 1 | 1.6 | 1.8 | 28.3 | 1390 |
| 1x240 | 2 | 1 | 1.6 | 1.8 | 30.5 | 1630 |
| 1x300 | 2 | 1 | 1.6 | 1.9 | 32.8 | 1900 |
