EMMU 133 Lead covered armoured Power Cables to BS 5467, 600/1000V
Single-core 600/1000 V cables with lead sheath
Application
These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications, in moist areas, where hydrocarbon and mechanical protections are needed and are protected against solvent penetration and corrosive attacks. The lead cover brings an enhanced resistance to aromatic hydrocarbons.

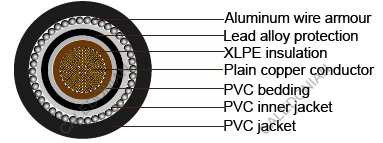

Construction
| Conductor | Annealed Copper conductor, circular or shaped, Class 2 to BS EN60228. |
|---|---|
| Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 conforming to BS 7655-1.3 or type GP 6 conforming to BS 7655-1.2. |
| Colour Code | 1 Core: Brown or Blue 2 Cores: Brown, Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green/Yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numerals |
| Bedding | PVC (Polyvinyl Chloride) |
| Protection | LC (Lead alloy 'E') sheathed |
| Inner Sheath | PVC (Polyvinyl Chloride) |
| Armour | Single Core: AWA (Aluminum Wire Armour) Multi Core: GSWA (Galvanized Steel Wire Armour) |
| Outer Sheath | PVC(Polyvinyl Chloride), or anti-rodent and anti-termite PVC(optional) |
Technical Information
Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 12 x overall diameter
Flame retardant BS EN 60332-1-2
| Nominal Cross-sectional Area | Strand Type | Nominal Insulation thickness | Nominal Lead sheath thickness | Nominal Inner Sheath thickness | Nominal Alum wire Armor dia. | Nominal Outer Sheath thickness | Approx. Overall Diameter | Aprrox Weight |
|---|---|---|---|---|---|---|---|---|
| mm² | No./mm | mm | mm | mm | mm | mm | mm | kg/km |
| 1x50 | 19/1.78 | 1 | 1.2 | 0.8 | 1.37 | 1.5 | 20 | 1285 |
| 1x70 | 19/2.14 | 1.1 | 1.2 | 0.8 | 1.37 | 1.5 | 22 | 1605 |
| 1x95 | 19/2.52 | 1.1 | 1.2 | 0.8 | 1.37 | 1.6 | 24 | 1965 |
| 1x120 | 37/2.03 | 1.2 | 1.3 | 0.8 | 1.37 | 1.6 | 25.5 | 2365 |
| 1x150 | 37/2.25 | 1.4 | 1.3 | 1 | 1.37 | 1.7 | 28 | 2800 |
| 1x185 | 37/2.52 | 1.6 | 1.4 | 1 | 1.72 | 1.8 | 31 | 3490 |
| 1x240 | 61/2.25 | 1.7 | 1.5 | 1 | 1.72 | 1.8 | 34 | 4300 |
| 1x300 | 61/2.52 | 1.8 | 1.6 | 1 | 1.72 | 1.9 | 37 | 5203 |
| 1x400 | 61/2.85 | 2 | 1.7 | 1.2 | 2.14 | 2 | 42 | 6615 |
