BS 5467 Standards Armoured Power Cables, 600/1000V

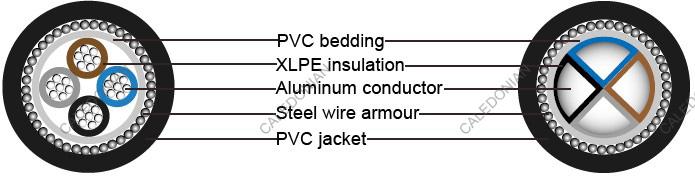

Four-core 600/1000 V cables with solid aluminum conductors
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.
Construction
| Conductor | Solid Aluminum or Annealed Copper conductor, circular or shaped, Class 2 to BS EN60228 |
|---|---|
| Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 conforming to BS 7655-1.3 or type GP 6 conforming to BS 7655-1.2. |
| Colour Code | 1 Core : Brown or Blue 2 Cores: Brown, Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green/Yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers |
| Bedding | The bedding shall consist of an extruded layer of polymeric material consistent with the operating temperature of the cable. |
| Armour | Single Core: AWA (Aluminum Wire Armour) Multi Core: GSWA (Galvanized Steel Wire Armour) |
| Outer Sheath | Extruded PVC, type 9 specified in BS7655-4.2. |
Technical Information
Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant BS EN 60332-1-2
| Nominal Cross-sectional Area | Nominal Insula- tion thickness | Nominal bedding thickness | Nominal Steel Wire Armor dia. | Armour strip | Nominal Sheath thickness | Approx. Overall Diameter | Aprrox Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|
| thickness | width | wire armor Extruded bedding | strip armor | Tapedb edding | ||||||
| mm² | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/km |
| 4x16 | 0.7 | 0.8 | 1.25 | 0.6 | 2.4 | 1.6 | 21.8 | 21.8 | 20.5 | 980 |
| 4x25 | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.7 | 26.9 | 26.5 | 24.5 | 1220 |
| 4x25* | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.7 | 24.6 | 24.2 | 22.2 | 1220 |
| 4x35 | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.8 | 29.5 | 29.2 | 27.1 | 1420 |
| 4x35* | 0.9 | 1 | 1.6 | 0.6 | 2.4 | 1.8 | 27 | 26.6 | 24.6 | 1420 |
| 4x50* | 1.0 | 1 | 1.6 | 1 | 2.4 | 1.9 | 30 | 29.6 | 28.4 | 1770 |
| 4x70* | 1.1 | 1.2 | 2.0 | 1 | 3.6 | 2.1 | 35.3 | 34.5 | 32.5 | 2500 |
| 4x95* | 1.1 | 1.2 | 2.0 | 1.4 | 3.6 | 2.2 | 39 | 38.2 | 37 | 2980 |
| 4x120* | 1.2 | 1.4 | 2.5 | 1.4 | 4.8 | 2.3 | 44 | 42.8 | 40.6 | 3950 |
| 4x150* | 1.4 | 1.4 | 2.5 | 1.4 | 4.8 | 2.4 | 47.9 | 46.7 | 44.5 | 4600 |
| 4x185* | 1.6 | 1.4 | 2.5 | 1.4 | 4.8 | 2.6 | 52.7 | 51.5 | 49.3 | 5430 |
| 4x240* | 1.7 | 1.6 | 2.5 | 1.8 | 4.8 | 2.7 | 58.5 | 56.9 | 55.5 | 6660 |
| 4x300* | 1.8 | 1.6 | 2.5 | 1.8 | 6.4 | 2.9 | 63.8 | 62.2 | 60.8 | 7770 |
