BS 5467 Standards Armoured Power Cables, 600/1000V
Five-core 600/1000 V cables with stranded copper conductors
Application
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.
Construction

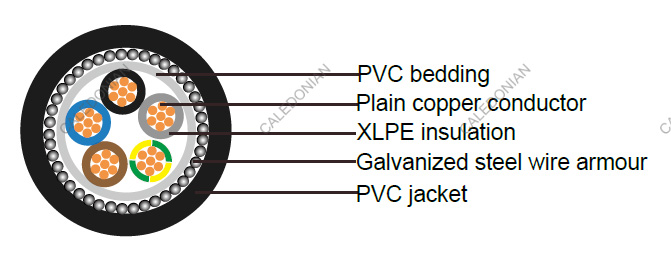

Conductor | Solid Aluminum or Annealed Copper conductor, circular or shaped, Class 2 to BS EN60228 |
---|---|
Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 conforming to BS 7655-1.3 or type GP 6 conforming to BS 7655-1.2. |
Colour Code | 1 Core : Brown or Blue 2 Cores: Brown, Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green/Yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers |
Bedding | The bedding shall consist of an extruded layer of polymeric material consistent with the operating temperature of the cable. |
Armour | Single Core: AWA (Aluminum Wire Armour) Multi Core: GSWA (Galvanized Steel Wire Armour) |
Outer Sheath | Extruded PVC, type 9 specified in BS7655-4.2. |
Technical Information
Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 1.5mm² to 16mm²: 6 x overall diameter
25mm² and above: 8 x overall diameter
Flame retardant BS EN 60332-1-2
Nominal Cross-sectional Area | Strand Type | Nominal Insulation thickness | Nominal bedding thickness | Nominal Steel Wire Armor dia. | Nominal Sheath thickness | Approx. Overall Diameter | Aprrox Weight | |
---|---|---|---|---|---|---|---|---|
Extruded bedding | Taped bedding | |||||||
mm² | No./mm | mm | mm | mm | mm | mm | mm | kg/km |
5x1.5 | 7/0.53 | 0.6 | 0.8 | 0.9 | 1.4 | 14.3 | - | 430 |
5x2.5 | 7/0.67 | 0.7 | 0.8 | 0.9 | 1.4 | 16.1 | - | 545 |
5x4 | 7/0.85 | 0.7 | 0.8 | 0.9 | 1.5 | 17.8 | - | 680 |
5x6 | 7/1.04 | 0.7 | 0.8 | 1.25 | 1.5 | 20 | - | 840 |
5x10 | 7/1.35 | 0.7 | 0.8 | 1.25 | 1.6 | 22.9 | - | 1105 |
5x16 | 7/1.70 | 0.7 | 1 | 1.6 | 1.7 | 26.6 | 26.2 | 1450 |
5x25 | 7/2.14 | 0.9 | 1 | 1.6 | 1.8 | 31.5 | 31.1 | 2245 |
5x35 | 7/2.52 | 0.9 | 1 | 1.6 | 1.9 | 34.8 | 34.4 | 2840 |
5x50 | 19/1.78 | 1.0 | 1.2 | 2 | 2 | 40.4 | 39.6 | 3895 |
5x70 | 19/2.14 | 1.1 | 1.2 | 2 | 2.2 | 46.3 | 45.5 | 5145 |
