BS5308 Part 1 / Type 1 (unarmoured cables)
BS5308 Cable Part 1 Type1 MG-XLPE-OS-LSOH

The unarmoured fire resistant versions (Part 1 Type 1) are typically used in chemical and process industries where there is danger of fire.

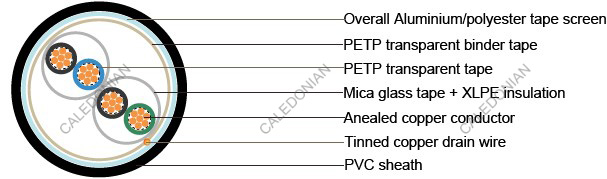

BS5308 Cable Part 1 Type1 MG-XLPE-OS-LSOH

Conductor	Annealed copper, Class 2
Insulation	Mica glass tape, XLPE (Cross Linked Polyethylene), or PE (optional)
Pairing	Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Colour code	See technical information
Binder tape	PETP transparent tape
Collective screen	Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
Outer sheath	LSOH(Low Smoke Zero Halogen) sheath Flame retardant to IEC60332-3-22 Fire resistant to IEC60331 Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2
Sheath colour	Black or blue

Operating temperature: -20˚C up to + 90˚C( fixed installation) 0˚C to +50˚C(during operation )
Minimum bending radius: 5 x overall diameter

Conductor Area Size		mm 2	0.5	0.75	1.0	1.5
Conductor Stranding		No. x mm	7 x 0.3	7 x 0.37	7 x 0.43	7 x 0.53
Conductor resistance max		ohm/km	39	24.5	18.1	12.1
Insulation resistance min		Gohm/km	5	5	5	5
Capacitance unbalance at 1 kHz(pair to pair screen)		pF/250m		250
Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two-pairs)		pF/m	75	75	75	75
Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair)		pF/m	115	115	115	115
Max. L/R Ratio for adjacent cores(Inductance/ Resistance)		μH/ohm	25	25	25	40
Test voltage	Core to core	V	1000	1000	1000	1000
Test voltage	Core to screen	V	1000	1000	1000	1000
Rated voltage max		V	300/500	300/500	300/500	300/500

No.of Pairs	No.and Dia. of Wires	Nominal Conductor Cross-Sectional Area	Nominal Thickness of Insulation	Nominal Thickness of Sheath	Nominal Dia. of Cable	Approx.Weight
	no./mm	mm2	mm	mm	mm	kg/km
1	7/0.43	1	0.6	1.4	7.8	89
2	7/0.43	1	0.6	1.4	9.2	121
5	7/0.43	1	0.6	1.4	13.9	298
