Belden Equivalent 9791
Multicore Overall Foil & Braid Screened Cables
Application
These multicore overall screened cables have individually insulated cores laid up in a Foil& Braid screen. These cables are suitable for RS-232 and RS-423 applications.

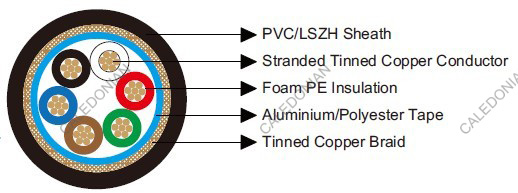

Construction
Conductor: Tinned copper wire.
Insulation: Foam PE.
Overall Screen1: Aluminium/Polyester
tape.
Overall Screen2: Tinned copper braid, 65% coverage.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, White, Red, Green, Brown, Blue.
Electrical & Mechanical Characteristics
AWG | 28 | |
---|---|---|
Conductor Construction | 7x0.127 | |
UL Style | 2919 | |
Maximum Conductor Resistance | Ω/km | 148.6 |
Voltage Rating | V | 30 |
Nominal Capacitance Conductor to Conductor | pF/m | 39 |
Nominal Capacitance Conductor to Screen | pF/m | 72 |
Bending Radius | 10xOverall Diameter | |
Operating Temperature | ℃ | -30~80 |
Dimensions
Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
---|---|---|---|---|
mm | mm | mm | ||
BE119791V | 6 | 0.4 | 0.6 | 5.7 |
BE119791H | 6 | 0.4 | 0.6 | 5.7 |
