Belden Equivalent Cables 9736
Multipair Individually Screened Cables
Application
These cables have individually screened pairs laid up. Each individually screened pair has a 24AWG stranded tinned copper drain wire. These cables are suitable for RS-422 applications, used as computer cables.

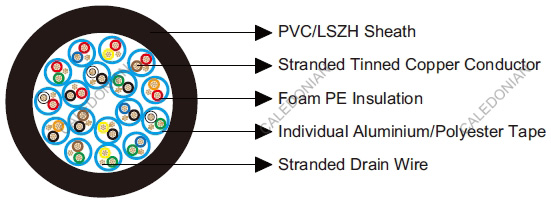

Construction
Conductor: Tinned copper wire.
Insulation: FoamPE.
Individual Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue, Green & Yellow, Green & Brown.
Electrical & Mechanical Characteristics
AWG | 24 | |
---|---|---|
Conductor Construction | 7x0.2 | |
UL Style | 2493 | |
Maximum Conductor Resistance | Ω/km | 85 |
Voltage Rating | V | 300 |
Nominal Capacitance Conductor to Conductor | pF/m | 41 |
Nominal Capacitance Conductor to Screen | pF/m | 76 |
Bending Radius | 10xOverall Diameter | |
Operating Temperature | ℃ | -20~60 |
Dimensions
Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
---|---|---|---|---|
mm | mm | mm | ||
BE119736V | 17 | 0.47 | 1.22 | 17.0 |
BE119736H | 17 | 0.47 | 1.22 | 17.0 |
