Belden Equivalent 9534 Multicore Overall Screened Cables
Application

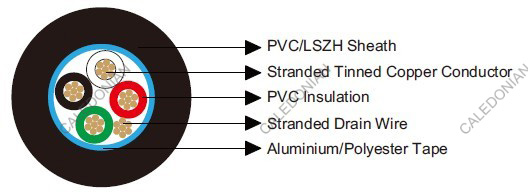

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.Construction
Conductor: Tinned copper wire.Insulation: PVC.
Overall Screen: Aluminium/Polyester tape.
Drain Wire: Stranded tinned copper, 7x0.20.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, White, Red, Green.
Electrical & Mechanical Characteristics
AWG | 24 | |
---|---|---|
Conductor Construction | 7x0.20 | |
UL Style | 2464 | |
Maximum Conductor Resistance | Ω/km | 85 |
Voltage Rating | V | 300 |
Nominal Capacitance Conductor to Conductor | pF/m | 108 |
Nominal Capacitance Conductor to Screen | pF/m | 213 |
Bending Radius | 10xOverall Diameter | |
Operating Temperature | ℃ | -30~80 |
Dimensions
Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
---|---|---|---|---|
mm | mm | mm | ||
BE119534V | 4 | 0.25 | 0.81 | 4.7 |
BE119534H | 4 | 0.25 | 0.81 | 4.7 |
