Belden Equivalent 9418 Multicore Overall Screened Cables
Application

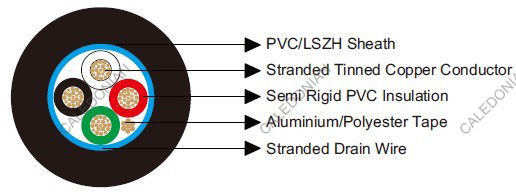

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.Construction
Conductor: Tinned copper wire.Insulation: Semi-Rigid PVC.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Stranded Tinned Copper.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Red, Green, Black, White.
Electrical & Mechanical Characteristics
AWG | 18 | |
---|---|---|
Conductor Construction | 19x0.254 | |
UL Style | 2464 | |
Maximum Conductor Resistance | Ω/km | 23 |
Voltage Rating | V | 300 |
Nominal Capacitance Conductor to Conductor | pF/m | 131 |
Nominal Capacitance Conductor to Screen | pF/m | 236 |
Bending Radius | 10xOverall Diameter | |
Operating Temperature | ℃ | -20~80 |
Dimensions
Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
---|---|---|---|---|
mm | mm | mm | ||
BE119418V | 4 | 0.28 | 0.89 | 6.2 |
BE119418H | 4 | 0.28 | 0.89 | 6.2 |
