Belden Equivalent 9319 Multicore Overall Screened Cables
Application

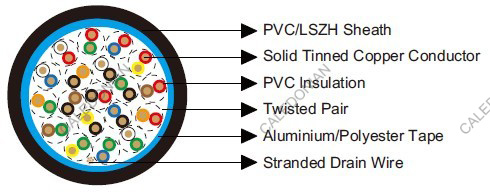

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.Construction
Conductor: Tinned copper wire.Insulation: PVC.
Overall Screen: Aluminium/Polyester tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White, Red/Green, Red/Blue, Red/Yellow, Red/Brown, Red/Orange, Green/White, Green/Blue, Green/Yellow, Green/Brown, Green/Orange, White/Blue.
Electrical & Mechanical Characteristics
AWG | 22 | |
---|---|---|
Conductor Construction | Solid | |
UL Style | 2464 | |
Maximum Conductor Resistance | Ω/km | 54.8 |
Voltage Rating | V | 300 |
Nominal Capacitance Conductor to Conductor | pF/m | 115 |
Nominal Capacitance Conductor to Screen | pF/m | 164 |
Bending Radius | 10xOverall Diameter | |
Operating Temperature | ℃ | -20~80 |
Dimensions
Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
---|---|---|---|---|
mm | mm | mm | ||
BE119319V | 19 | 0.33 | 1.02 | 12.6 |
BE119319H | 19 | 0.33 | 1.02 | 12.6 |
