Belden Equivalent 9261 Multicore Overall Screened Cables
Application

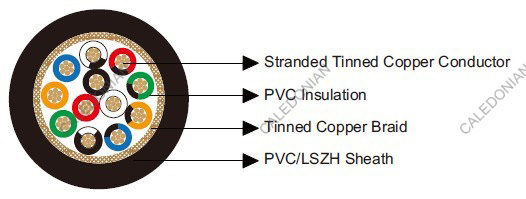

These multicore overall screened cables have individually insulated cores laid up in a tinned copper braid screen, suitable for used as control cables.Construction
Conductor: Tinned copper wire.Insulation: PVC.
Overall Screen: Tinned copper braid, 85% coverage.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/ Black, Orange/Black, Blue/Black, Black/White.
Electrical & Mechanical Characteristics
AWG | 20 | |
---|---|---|
Conductor Construction | 7x0.32 | |
UL Style | 2464 | |
Maximum Conductor Resistance | Ω/km | 34.1 |
Voltage Rating | V | 300 |
Nominal Capacitance Conductor to Conductor | pF/m | 85 |
Nominal Capacitance Conductor to Screen | pF/m | 187 |
Bending Radius | 10xOverall Diameter | |
Operating Temperature | ℃ | -20~80 |
Dimensions
Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
---|---|---|---|---|
mm | mm | mm | ||
BE119261V | 12 | 0.41 | 1.02 | 10.1 |
BE119261H | 12 | 0.41 | 1.02 | 10.1 |
