Belden Equivalent Cables 8723
Multipair Individually Screened Cables

Application

These cables have individually screened pairs laid up and a tinned copper drain wire. These cables are suitable for used as audio, control and computer cables.

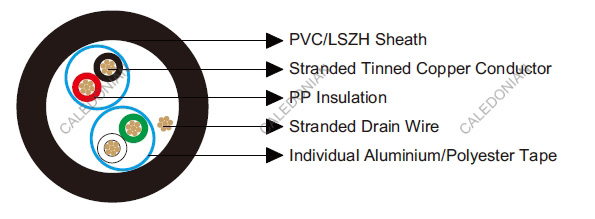

Construction

Belden Equivalent Cables 8723

Conductor: Tinned copper wire.

Insulation: PP.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Red & Black, Green & White.

Electrical & Mechanical Characteristics

AWG   22
Conductor Construction   7x0.254
Maximum Conductor Resistance Ω/km 54.8
Voltage Rating V 300
Nominal Capacitance Conductor to Conductor pF/m 108
Nominal Capacitance Conductor to Screen pF/m 203
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~60

Dimensions

Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118723V 2 0.2 0.5 4.3
BE118723H 2 0.2 0.5 4.3
