Belden Equivalent 8132 Multipair Overall Screened Cables

Belden Equivalent 8132

Application

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

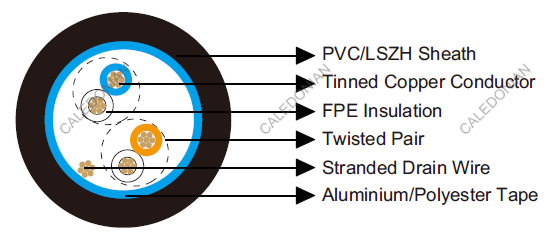

Construction

Conductor: Tinned copper wire.
Insulation: Foam Polyethylene.
Overall Screen: Aluminium/Polyester tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: White/Blue, White/Orange.

Electrical & Mechanical Characteristics

AWG   28
Conductor Construction   7x0.127
UL Style   2919
Maximum Conductor Resistance Ω/km 21.6
Voltage Rating V 30
Nominal Capacitance Conductor to Conductor pF/m 37
Nominal Capacitance Conductor to Screen pF/m 67
Bending Radius   10xOverall Diameter
Operating Temperature ℃ -20~80

Dimensions

Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE118132V 2 0.38 0.89 6.0
BE118132H 2 0.38 0.89 6.0
