Belden Equivalent Cables 26514
Multipair Overall Foil & Braid Screened Armoured Cables
Application
These multipair overall screened armoured cables provide excellent protections. They are ACIC armoured cables, used as instrumentation cables.

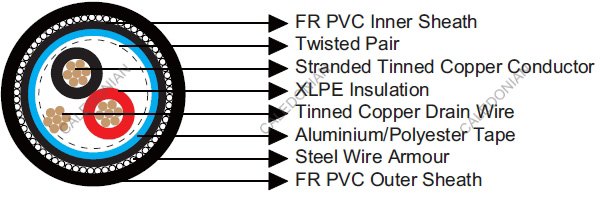

Construction
Conductor: Tinned copper wire
Insulation: XLPE.
Overall Screen: Aluminium/ Polyester tape.
Drain Wire: 20 AWG (7X28) tinned copper wire.
Inner Sheath: FR PVC.
Armour: Steel wire armour
Outer Sheath: FR PVC.
Insulation Colour: Black, Red. Other colours are available upon your request.
Electrical & Mechanical Characteristics
AWG | 18 | |
---|---|---|
Conductor Construction | 7x26 | |
Nominal Conductor DC Resistance @20℃ | Ω/km | 22 |
Nominal Outer Shield DC Resistance @ 20℃ | Ω/km | 33 |
Voltage Rating | V | 300 |
Bending Radius | 12xOverall Diameter | |
Operating Temperature | ℃ | -40~90 |
Dimensions
Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
---|---|---|---|---|
mm | mm | mm | ||
BE1126514V SWA | 1 | 0.7 | 1.5 | 12.64±1 |
